Pacific AutoPress 14 LT With WizardPDS®
Pacific AutoPress 14 LT With WizardPDS®

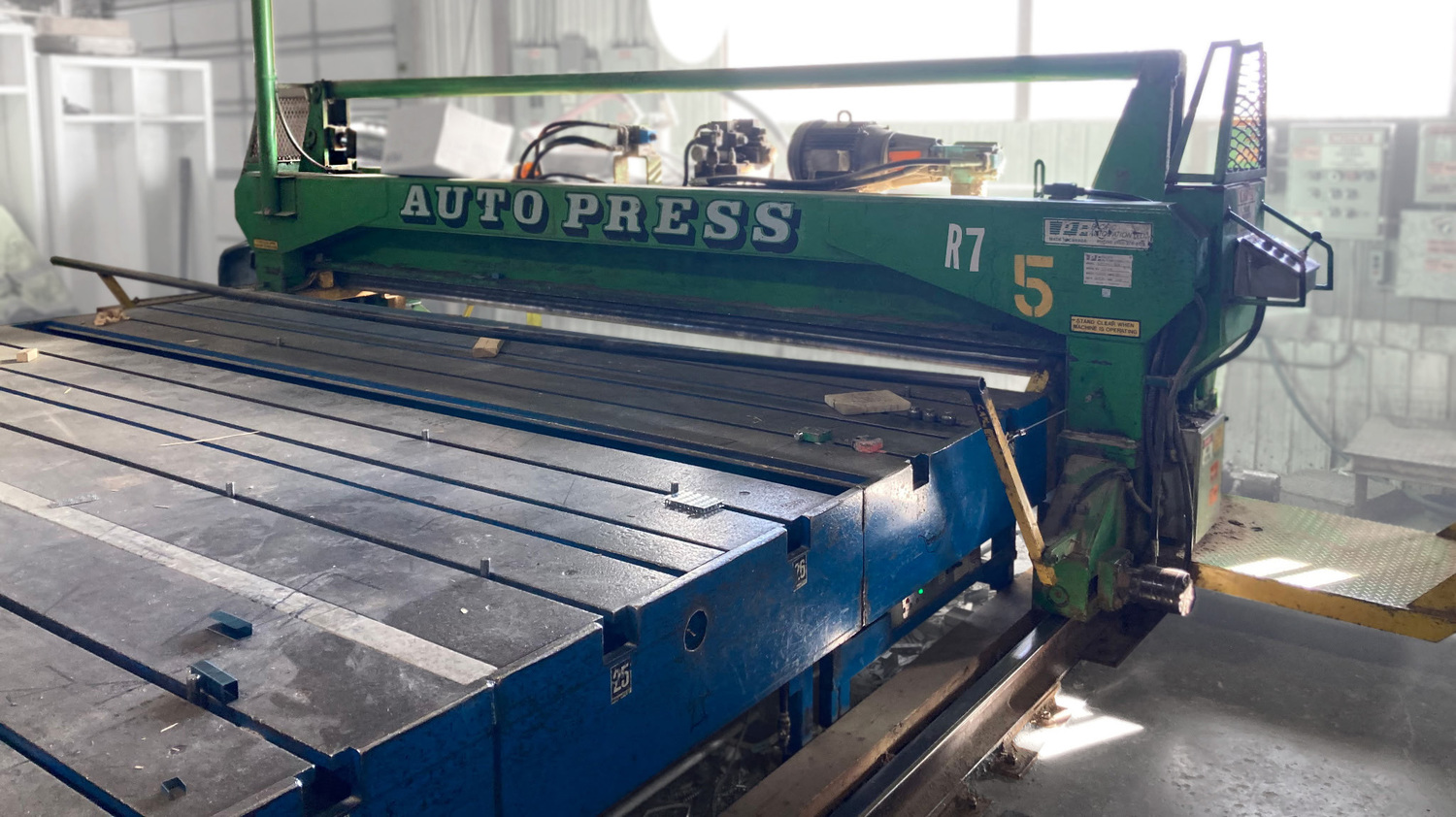

- AutoPress 14LT high speed Hydraulic Gantry with 14' X 24" Press Platen, 15HP x 208/230/480 volt x 3 phase motor, 50 Ton press capacity with high pressure boost cycle, (4) Wheel Drive system with travel speeds up to 280' per minute. Single Joystick Control for all functions of press head. Bottom Chord Operators Platform.

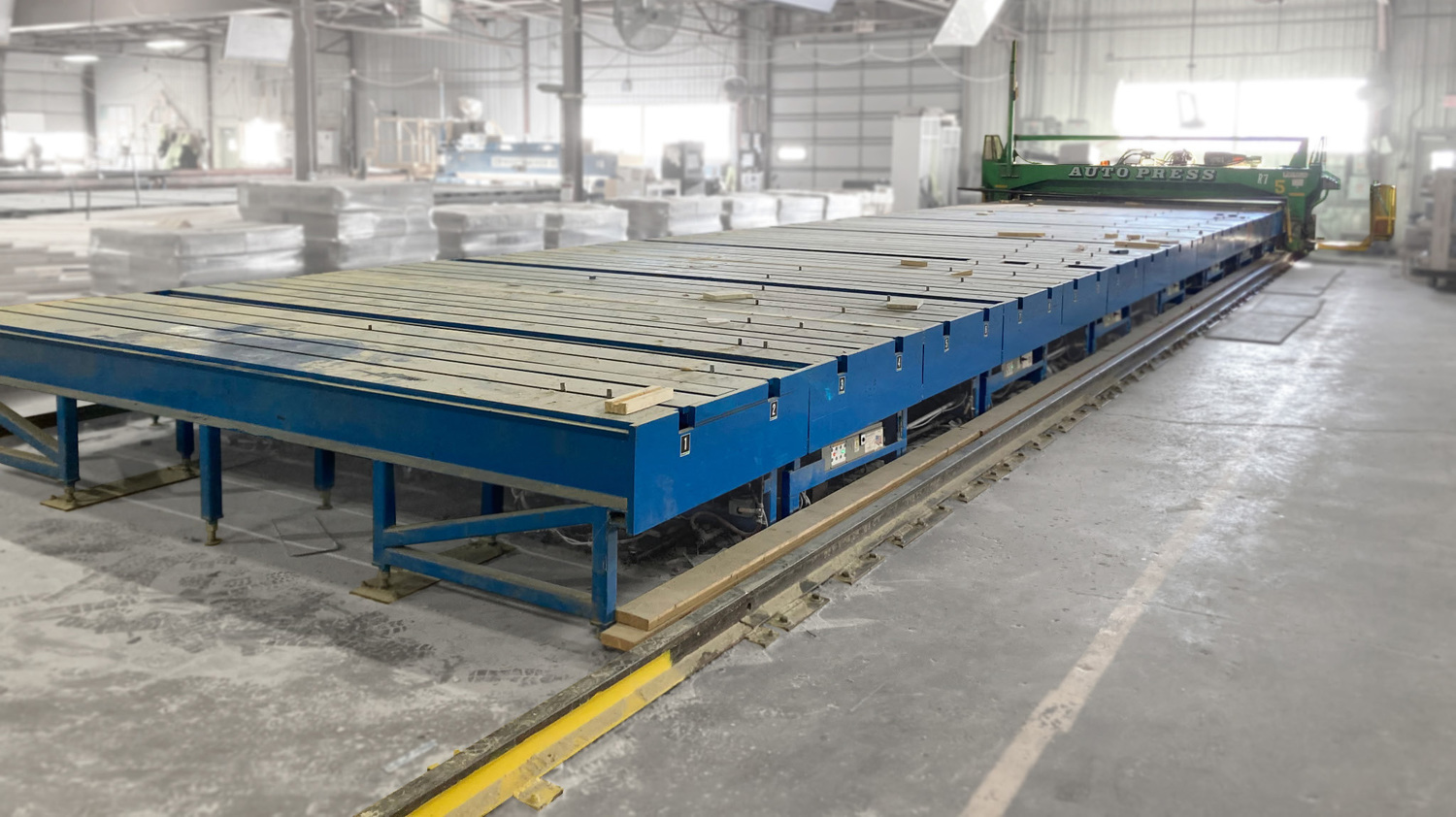

- 2017 (7) WizardPDS® Ready 1” Steel Slotted Top Table sets 8’ wide X 14', 1” Reaction plate integrated into the table for pick point of head, Truss ejector opening located between table sets. Each Table is prepared to receive (4) WizardPDS® assemblies spaced 24” o/c. T-Slot manual jig positions located between each WizardPDS® position, No walk thru between tables. 14’ X 8’ Table set with 1” steel top weights approx. 7500 lbs. each.
- 2017 (28) WizardPDS® assemblies spaced 24” o/c, complete.
- 2017 (7) Pneumatic Rack & Pinion End Eject Lifters for end ejection of truss, positioned between table sets.
- (1) Zone control air system for truss ejectors.
- 56’ Overhead power supply to Gantry.
- 85# RR Floor Track
- Gantry Park stations.
- Wired for 480 Volt X 3 Phase Operation
Options Available:
Offering as a full line with finish rolls and stacker:
Offering as a full line with finish rolls and stacker:
- 16 foot Pacific AR16 Finish Press
- 60 foot Pacific Peak Up Stacker
