New - Auto-10 Press

Contact us for pricing

Get a Quote

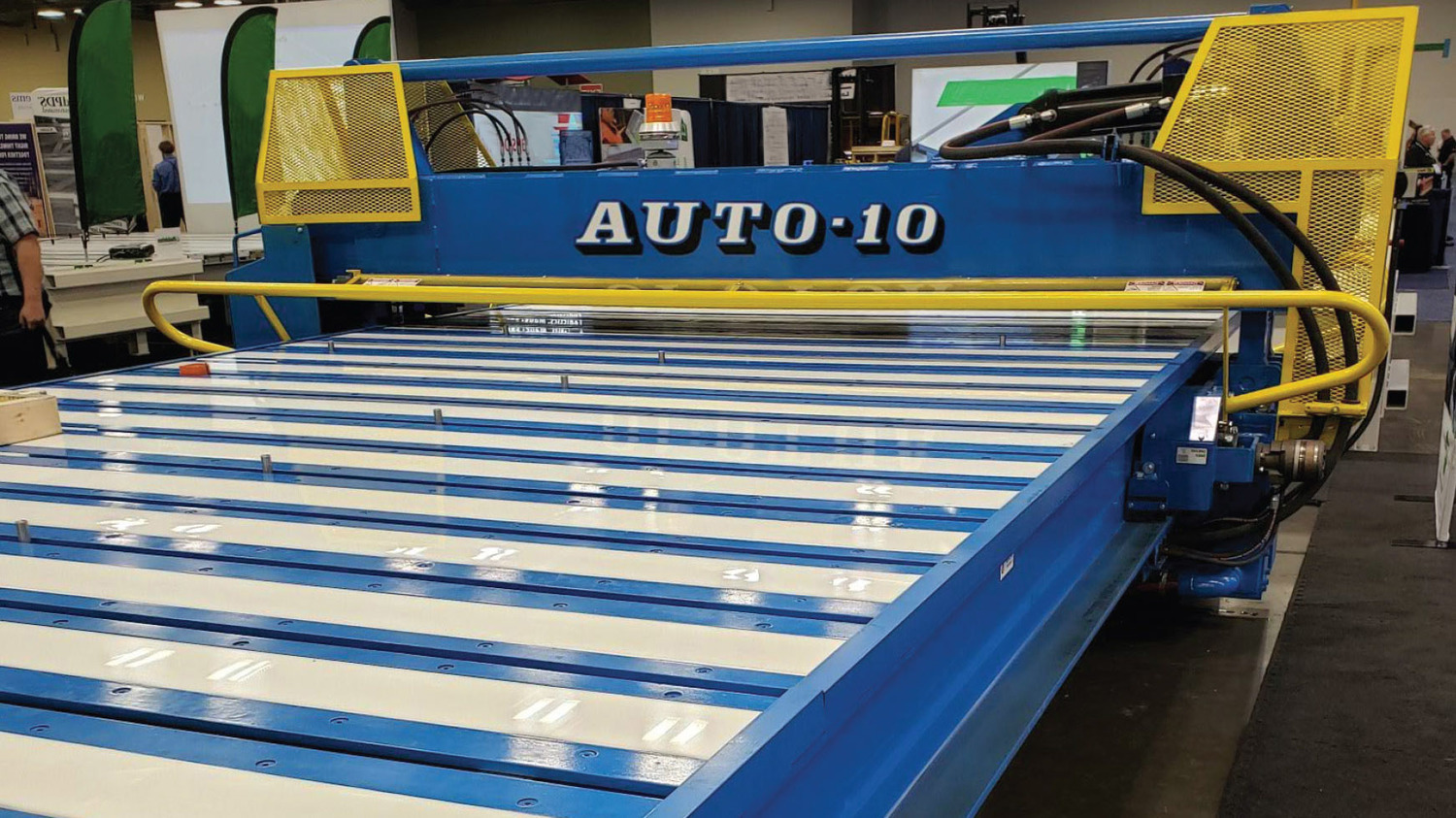

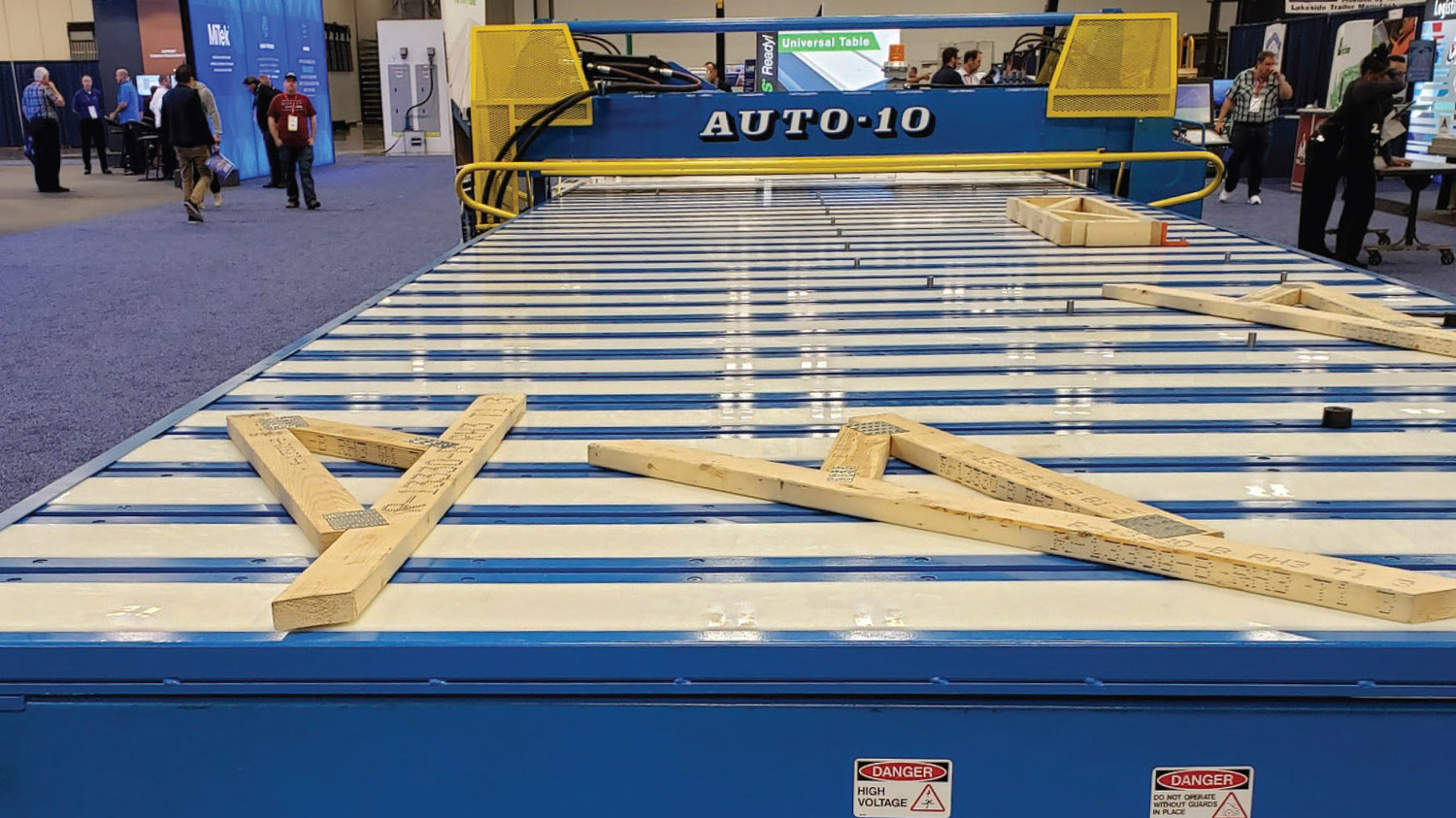

The Auto 10 brings WizardPDS® speed, accuracy, and setup efficiency to the rest of your smaller and highly custom jobs; smaller roof trusses, occasional or deeper floor trusses (using patented WizardPDS® Drop & Lock Floor Truss Fixtures), parallel chord, any junk or jack style trusses – the Auto 10 has it covered. One step pressing, no finish roller required. No more inefficient, manually jigged or make-do ways of building this portion of your jobs; an ever increasing percentage of what you do. WizardPDS® ready table configurable to up to 36’ in length – add the automation at a time of your choosing. Jig table supplied with WizardPDS® positions spaced 24” o/c with Steel T-Slot openings spaced between 24” o/c. The Auto-10 Press gets your small trusses off your full size table without sacrificing the exclusive and unmatched performance and profitability of WizardPDS® automated jigging.
  • 50 ton gantry head assures full plate embedment in one press
  • 10´ x 24˝ pressing platen
  • 1.5 sec pressing cycle
  • 280 surface feet/min travel speed
  • 4 wheel drive, joystick control
  • 15 hp motor, 3 phase, 208/230, 440 or 575 V
  • 10’ Table available in lengths from 24’ – 36’
  • Wizard-ready with 24˝ OC spacing
  • Optional gantry-mounted Wizard computer control station
  • No limits – build Jacks and Floors side-by-side
  • Available in the Auto-8 series too!
