MiTek Rail Rider
Contact us for pricing
EXCHANGE ONLY- contact us for more details.

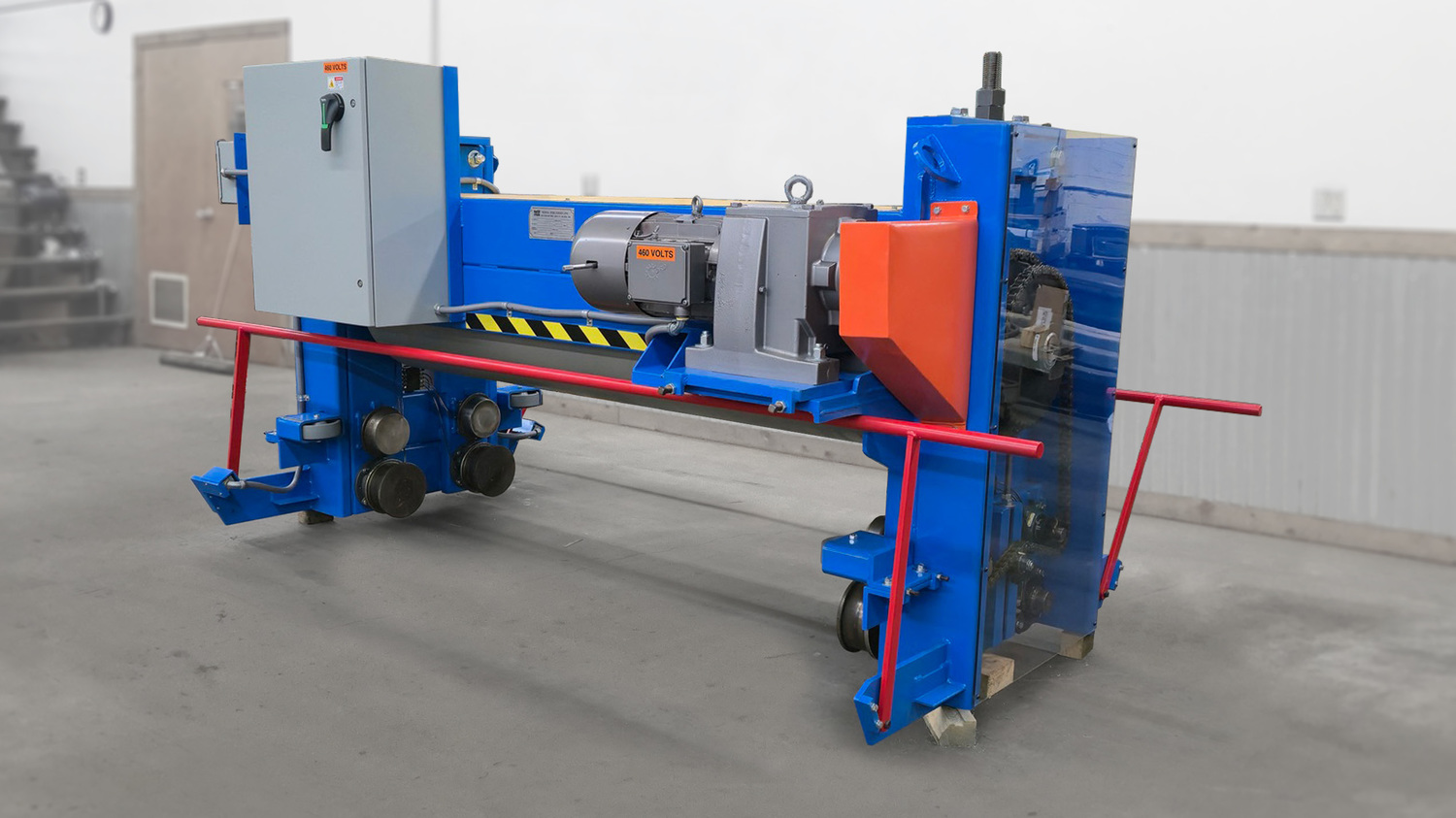

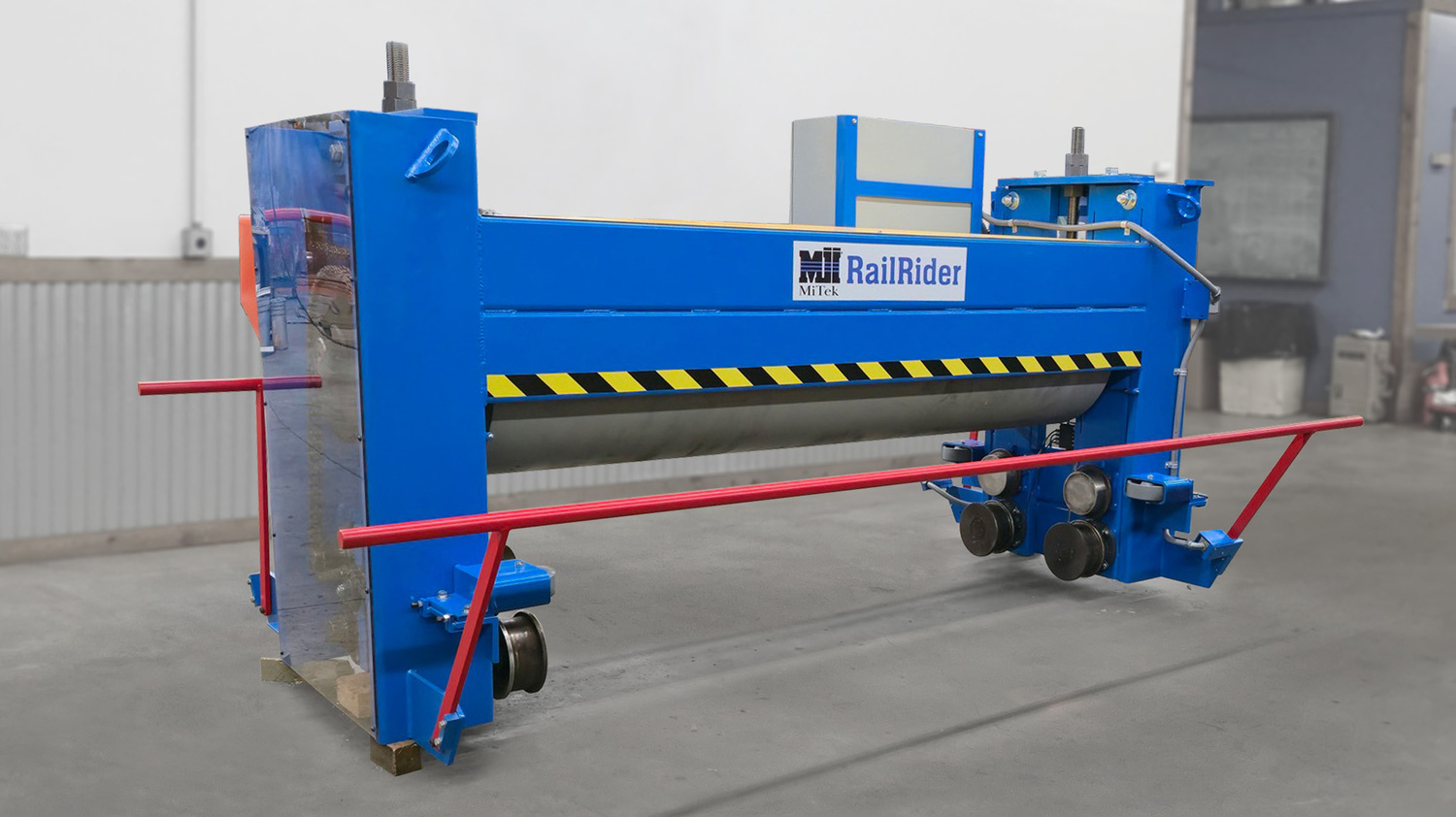

MiTek Rail Rider Floor Press
MiTek Rail Rider Floor Press
- Frequency drive with soft start and variable speed
- (1) 7' x 24" Diameter roll with 3’ 7/16" shafts
- New drive train components, bearings, sprockets, and chains
- New updated control panel including flashing beacon and audible signal
- 10 horsepower brake motor
- Safety shutdown bars and E-stop switch
- Operator Pendant Control Options
- New limited warranty
- Roller length: 7' (other sizes available)
- Throat opening length: 7’ 4”
- Roller size: 24” nominal OD
- Roller material: 1" steel
- Roller bearing: 3’ 7/16"
- Shaft diameter: 4” continuous shaft
- Wheels: 4 drive wheels (steel), 4 pressure wheels (steel), 4 guide wheels (polyurethane over steel core)
- Drive chain: #80
- Motor: 10 hp
- Approx. gantry weight (7' gantry): 6,100 lb (varies for other sizes)
- Speed of travel: Up to 125 ft per minute
- Lumber capacity: 2x4 and 2x6
- Truss depths: 12" to 30" (additional depths listed in Options)
- Motor startup control: VFD
- Direction of travel: Left and right
- Controls: Pushbutton pendant (additional choices in Options), Pnuematics operated by remote control
- Working Width: 13’ 9”
- Roller Diameter: 24” dia.
- Voltage (VAC):
- Electrical Specs: 480 V
- Optional Electrical Specs: 208, 230
