The ProCut UC-Series Saws safely deliver

spot-on cutting – up to 4-boards at a time.

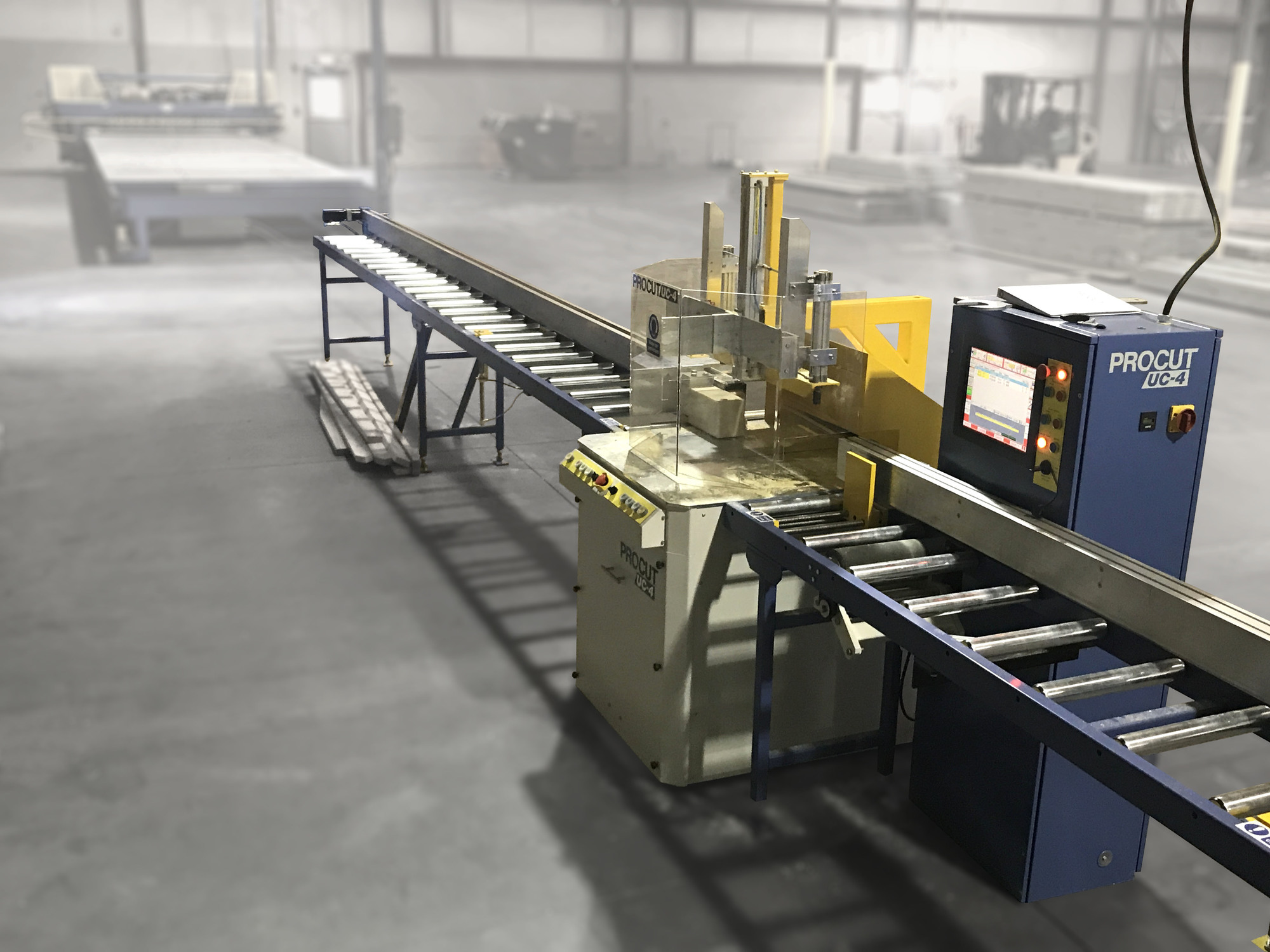

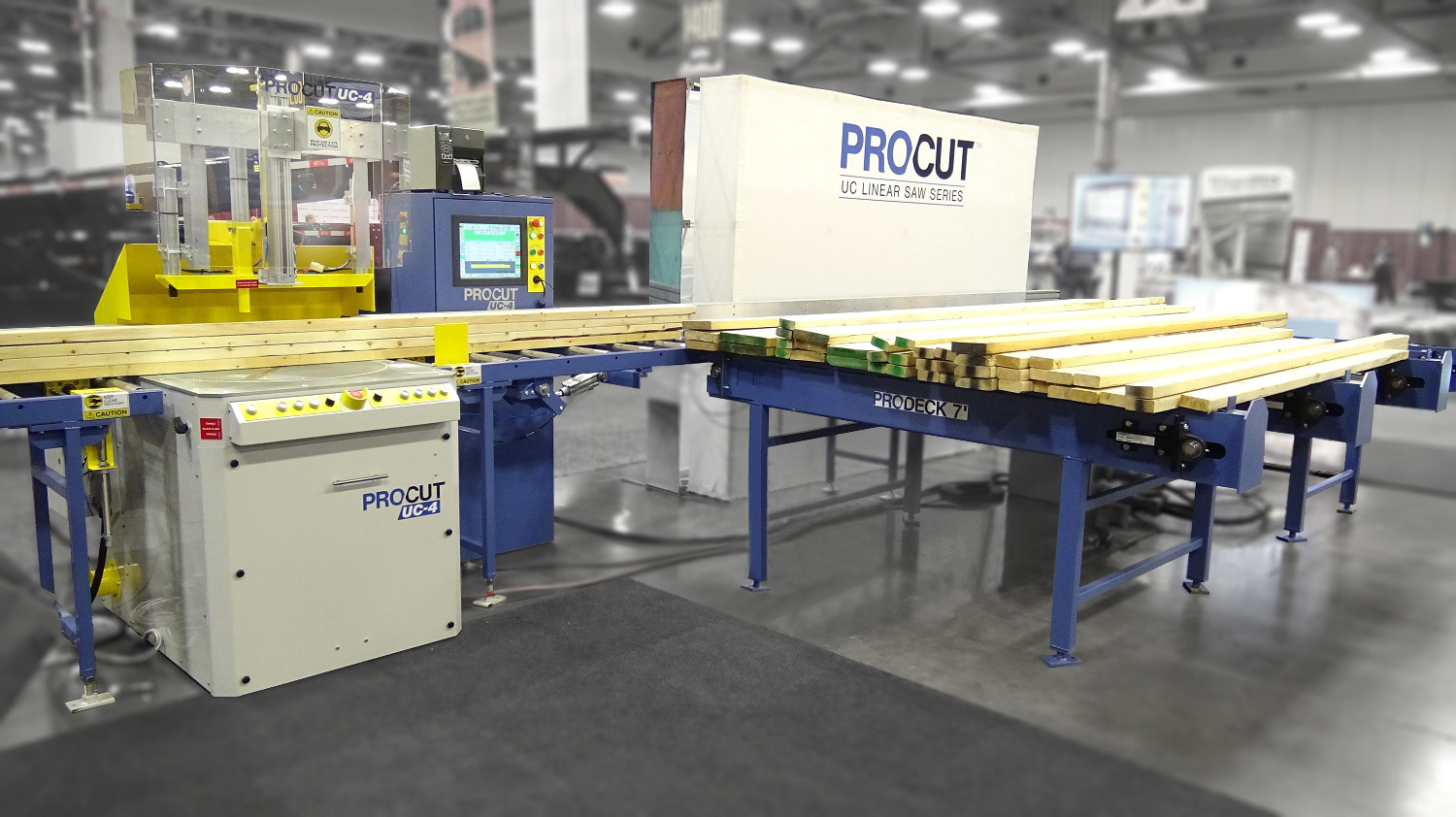

EMSI PROCUT-UC Series Linear Saw

▸ Versatile!

▸ Spot-on Accuracy!

▸ Easy to use!

▸ Undercut Safety!

▸ Clean!



The ProCut™ UC uses 6-Position clamping to hold and square lumber up to 2˝x 12˝; producing straighter cuts, accurate lengths and precision angles – including perfect heels and angles up to 4-boards high.



Multiple Data inputs: Network and USB file transfer, Touchscreen data input at the saw for on-demand cutting. The ProCut™ UC is compatible with all leading truss design software.



Hands-free, simple and safe clamping and cutting operations using dual button control system - providing unprecedented operator safety. A clear polyguard provides fully enclosed saw chamber while cutting, and operator total visibility during the cut cycle.



The full length dust collection hood, with 4˝ outlets, yields a cleaner work environment. (Dust extraction
unit required).



Standard unit complete with: (3) Axis Servo Controlled – Angle, Centerline and Length, 20´ Left Hand Automated Measuring System (Right-Hand optional), 16´ Powered Infeed Conveyor, and (6) Point Clamping System; including Squaring Clamp. Operator Console with Computer and Touch Screen Control. Machine wired for 220 Volt X 3 Phase X 60 Cycle Operation.



Technology and design updates have taken an already proven undercut saw, with a successful 20 year International track record, to the next level.



This machine is currently manufactured in the UK. Manufacturing and support to be moved to Minneapolis, MN, USA, in 2017.

ProCut™ UC-3 (Standard Unit)

Technical Specification:

▷  Working Height – 39˝

▷  Saw Cabinet Width – 34˝

▷  Saw Cabinet Depth – 50˝

▷  Infeed Conveyor – 16´ 6˝

▷  Outfeed Conveyor – 20´

▷  Saw Motor – 6.2 HP X 220 Volt X 3 Ph

▷  Air Requirements – 2 CFM

▷  TCT Blade size – 25.6˝

▷  Service Hour Meter to – 99,999 hours



Safety Features:

▷  Dual Push Button Control System w/ E-Stop

▷  Clear Polyguard Saw Blade Guard

▷  Full Width Dust Extraction Hood with (4) - 4˝ Outlets

▷  Lumber Clamping/per Clamp – 120 Lbs.

▷  Carries “CE” Mark/OSHA Reviewed/"CSA" Mark Available

    *Dust Extraction Required – Consult Eide



Operational Specifications:

▷  Angulation – 180˚ (0-90-0)

▷  Angulation Tolerance – CNC +/- 0.100˝

▷  Maximum Lumber width – 11.8˝

▷  Centerline Capacity – 0˝ – 5.9˝

▷  Centerline Tolerance – CNC +/- 0.02˝

▷  Length Tolerance – CNC +/- 0.02˝

▷  Maximum Lumber Height (3 board high) – 5˝

▷  Maximum Lumber Height (optional 4 board) – 6.5˝

▷  Scarf Cut  >34˝ on 2x10

▷  Data Input – Network, USB or Manual

▷  Operating System – Windows 7

▷  Works with all leading truss design software.



Specifications subject to change.



Options available:

▷  ProCut™UC-4 - 4-board high.

▷  Right hand measuring system.

▷  Dust collection systems.

▷  Lumber Infeed
